Adjusting side mirror angle/Global patented source technology
Opening&closing charge port door for electric vehicle
Adjusting HVAC(Heating,Ventilating,Air Conditioning)
Adjusting airvent operating direction
After receiving the signal, the central control system will send instruction to the door lock actuator
Adjust the opening and closing of the water valve actuator
Adjusting Headlamp Angle
Adjust the high beam and low beam for Headlamp
Regulates intake grille opening/closing positions
Adjust the high beam and low beam for Headlamp

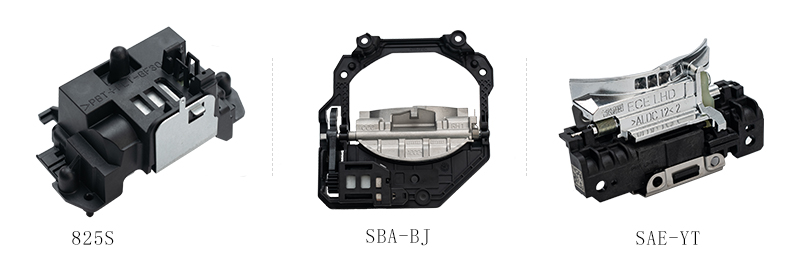

ITEM | SPEC | ||||
SBA-S | SBA-B | SBA-Y | |||
Rated Voltage | 13.5V | 13.2V | 12V | ||
Voltage Range | 9V~17V | 9V~16V | 9V~16V | ||
Stall Current(mA) | Max 450 | Max 435 | - | ||
Operating Speed(sec) | 0.1 | Max0.5 | Max 0.5 | ||
Operating Angle | 25° | Min 65° | 55°±2° | ||
Noise at 1m(dBA) | Max 60 | - | - | ||
* Customized design | |||||
